RG500 FSR (NEW)
RG500 Flexible SpaceWire Router (FSR)

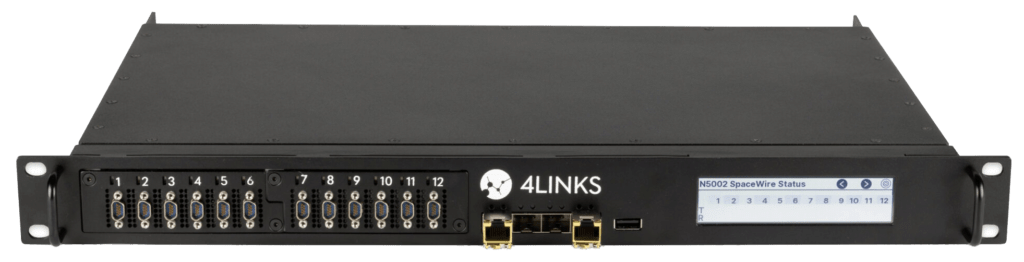

The 4Links RG500 Flexible SpaceWire Router (FSR) is a next-generation SpaceWire router for laboratory use. It supports up to 12 SpaceWire links. The system is managed either via a dedicated rear-panel Ethernet connection or through the integrated front-panel touchscreen. Gigabit Ethernet SFP+ interfaces enable the configuration of the routing tables held on the device as well as returning router status. Built for control, reliability and scalability.
Key Features
- Capable of routing up to 12 SpaceWire ports simultaneously
- Timecode forwarding
- Throughput up to 400 Mbit/s on each link
- SMA ports for traffic management
- Optional Output Control (OE/OD) for SpaceWire lockout
Key Applications
- System integration testing
- SpaceWire router test and debug
- Management of lab-based SpaceWire networks

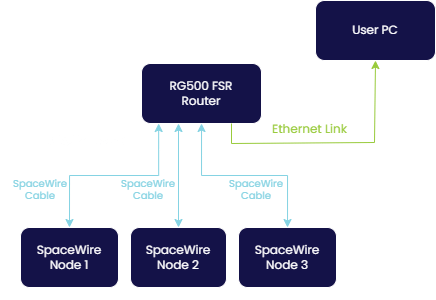

Typical Application Diagram - FSR
Technical Specification - RG500 Flexible SpaceWire Interface (FSR)
| Form Factor | 19 inch rack mount |
| Height | 1U |
| Management Ethernet Interface | 100 Mbit/s |
| Supported Management Protocols | SNMP, TFTP, UDP |
| Router Management Interface | 1x SFP+ Port (Gigabit Ethernet) |
| Application Data Protocols | 1x TCP (4Links Application Protocol) |
| User Interface | Touch screen (480 x 118), USB 2.0 |
| Number of SpaceWire Ports | Up to 12 |
| Maximum SpaceWire Link Speed | 400 Mb/s |
| Power Supply | 12v 5A DC (Included) |
| Export Classification | EAR-99 TAA Compliant |
Software and Accessories Included
- 1x RJ45 SFP module
- 1x SpaceWire loopback connector
- Power supply
- Mains power lead
